Authenticating with an Identity Provider

Prerequisites

Please read the following background material on OIDC tokens and Structured Authentication.

Overview

Kubernetes on its own doesn’t provide any user management. In other words, users aren’t managed through Kubernetes resources. Whenever you refer to a human user it’s sufficient to use a unique ID, for example, an email address. Nevertheless, Gardener project owners can use an identity provider to authenticate user access for shoot clusters in the following way:

1. Configure an Identity Provider using OpenID Connect (OIDC).
2. Configure a local kubectl oidc-login to enable oidc-login.
3. Configure the shoot cluster to share details of the OIDC-compliant identity provider with the Kubernetes API Server.
4. Authorize an authenticated user using role-based access control (RBAC).
5. Verify the result

NOTE

Gardener allows administrators to modify aspects of the control plane setup. It gives administrators full control of how the control plane is parameterized. While this offers much flexibility, administrators need to ensure that they don’t configure a control plane that goes beyond the service level agreements of the responsible operators team.

Configure an Identity Provider

Create a tenant in an OIDC compatible Identity Provider. For simplicity, we use Auth0, which has a free plan.

1. In your tenant, create a client application to use authentication with kubectl:

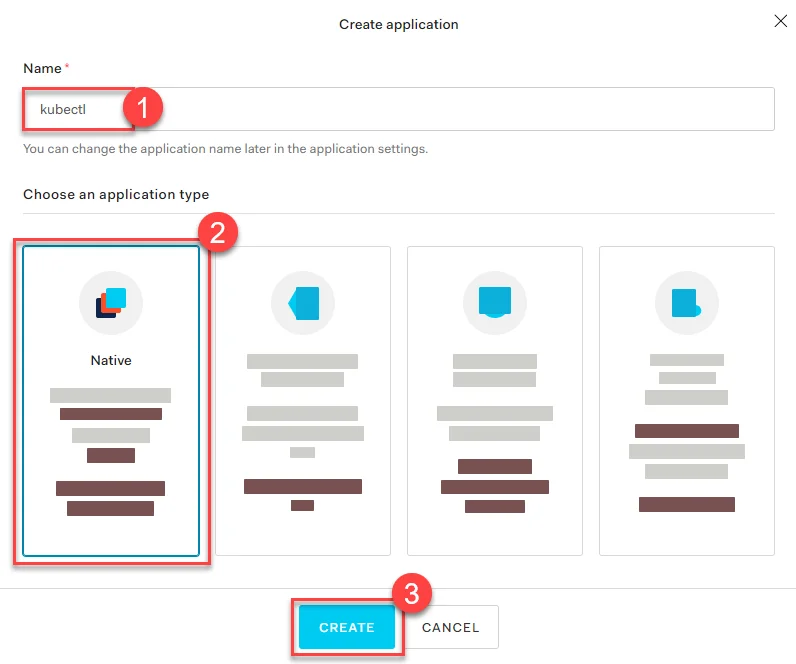

2. Provide a Name, choose Native as application type, and choose CREATE.

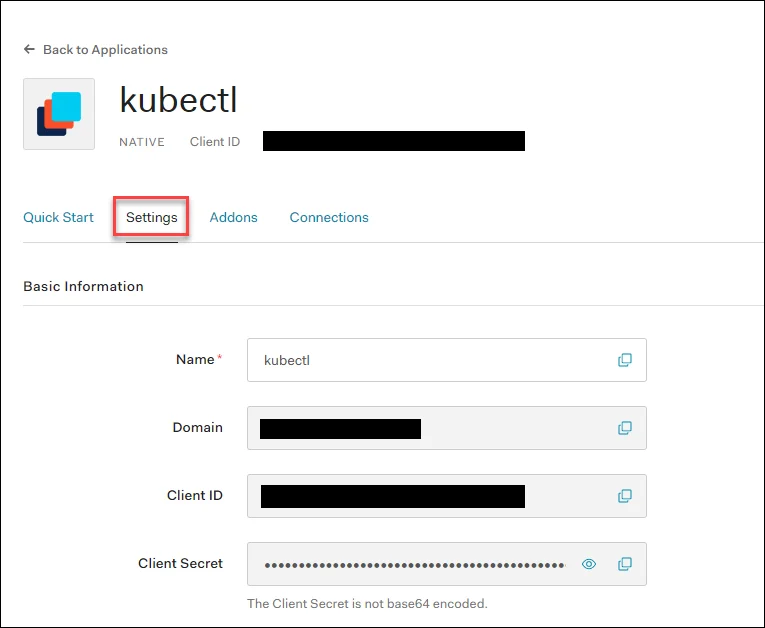

3. In the tab Settings, copy the following parameters to a local text file:

   • Domain

     Corresponds to the issuer in OIDC. It must be an https-secured endpoint (Auth0 requires a trailing / at the end). For more information, see Issuer Identifier.

   • Client ID

   • Client Secret



4. Configure the client to have a callback url of http://localhost:8000. This callback connects to your local kubectl oidc-login plugin:



5. Save your changes.

6. Verify that https://<Auth0 Domain>/.well-known/openid-configuration is reachable.

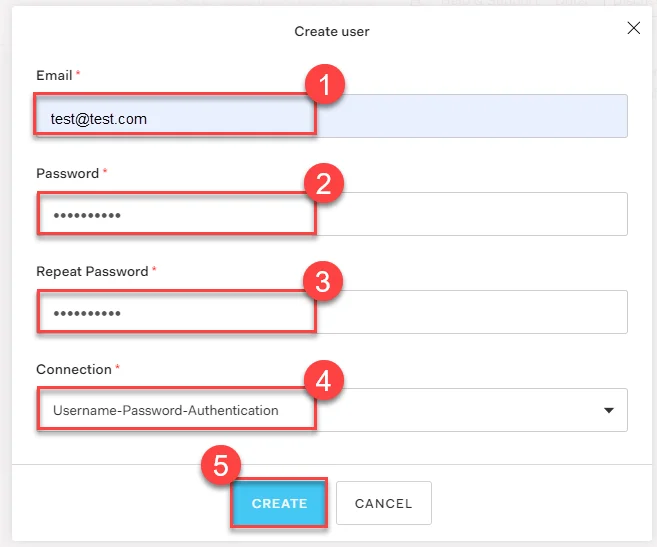

7. Choose Users & Roles > Users > CREATE USERS to create a user with a user and password:



NOTE

Users must have a verified email address.

Configure a Local kubectl oidc-login

1. Install the kubectl plugin oidc-login. We highly recommend the krew installation tool, which also makes other plugins easily available.

   kubectl krew install oidc-login

   The response looks like this:

   Updated the local copy of plugin index.
   Installing plugin: oidc-login
   CAVEATS:
   \
   |  You need to setup the OIDC provider, Kubernetes API server, role binding and kubeconfig.
   |  See https://github.com/int128/kubelogin for more.
   /
   Installed plugin: oidc-login

2. Prepare a kubeconfig for later use:

   cp ~/.kube/config ~/.kube/config-oidc

3. Modify the configuration of ~/.kube/config-oidc as follows:

   apiVersion: v1
   kind: Config

   ...

   contexts:
   - context:
       cluster: shoot--project--mycluster
       user: my-oidc
     name: shoot--project--mycluster

   ...

   users:
   - name: my-oidc
     user:
       exec:
         apiVersion: client.authentication.k8s.io/v1beta1
         command: kubectl
         args:
         - oidc-login
         - get-token
         - --oidc-issuer-url=https://<Issuer>/
         - --oidc-client-id=<Client ID>
         - --oidc-client-secret=<Client Secret>
         - --oidc-extra-scope=email,offline_access,profile

To test our OIDC-based authentication, the context shoot--project--mycluster of ~/.kube/config-oidc is used in a later step. For now, continue to use the configuration ~/.kube/config with administration rights for your cluster.

Configure the Shoot Cluster

Create a AuthenticationConfiguration configmap in the project's namespace. For more options, check out Gardener Structured Authentication and Kubernetes Structured Authentication documentation.

apiVersion: v1
kind: ConfigMap
metadata:
  name: authentication-config
  namespace: garden-project
data:
  config.yaml: |
    apiVersion: apiserver.config.k8s.io/v1beta1
    kind: AuthenticationConfiguration
    jwt:
    - issuer:
        url: https://<Issuer>/
        audiences:
        - <Client ID>
      claimMappings:
        username:
          claim: 'email'
        prefix: 'unique-issuer-identifier:'

Modify the shoot cluster YAML as follows, using the client ID and the domain (as issuer) from the settings of the client application you created in Auth0:

kind: Shoot
apiVersion: garden.sapcloud.io/v1beta1
metadata:
  name: mycluster
  namespace: garden-project
...
spec:
  kubernetes:
    kubeAPIServer:
      structuredAuthentication:
        configMapName: authentication-config

This change of the Shoot manifest triggers a reconciliation. Once the reconciliation is finished, your OIDC configuration is applied. It doesn't invalidate other certificate-based authentication methods. Wait for Gardener to reconcile the change. It can take up to 5 minutes.

Authorize an Authenticated User

In Auth0, you created a user with a verified email address, test@test.com in our example. For simplicity, we authorize a single user identified by this email address with the cluster role view:

IMPORTANT

Do not forget to add the unique prefix to the name of the user.

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: viewer-test
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: view
subjects:
- apiGroup: rbac.authorization.k8s.io
  kind: User
  name: unique-issuer-identifier:test@test.com

As administrator, apply the cluster role binding in your shoot cluster.

Verify the Result

1. To step into the shoes of your user, use the prepared kubeconfig file ~/.kube/config-oidc, and switch to the context that uses oidc-login:

   cd ~/.kube
   export KUBECONFIG=$(pwd)/config-oidc
   kubectl config use-context `shoot--project--mycluster`

2. kubectl delegates the authentication to plugin oidc-login the first time the user uses kubectl to contact the API server, for example:

   kubectl get all

   The plugin opens a browser for an interactive authentication session with Auth0, and in parallel serves a local webserver for the configured callback.

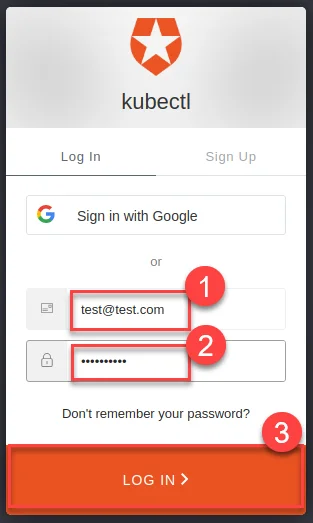

3. Enter your login credentials.



   You should get a successful response from the API server:

   Opening in existing browser session.
   NAME                 TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)   AGE
   service/kubernetes   ClusterIP   100.64.0.1   <none>        443/TCP   86m

NOTE

After a successful login, kubectl uses a token for authentication so that you don’t have to provide user and password for every new kubectl command. How long the token is valid can be configured. If you want to log in again earlier, reset plugin oidc-login:

1. Delete directory ~/.kube/cache/oidc-login.
2. Delete the browser cache.

1. To see if your user uses the cluster role view, do some checks with kubectl auth can-i.

   • The response for the following commands should be no:

     kubectl auth can-i create clusterrolebindings

     kubectl auth can-i get secrets

     kubectl auth can-i describe secrets

   • The response for the following commands should be yes:

     kubectl auth can-i list pods

     kubectl auth can-i get pods

If the last step is successful, you’ve configured your cluster to authenticate against an identity provider using OIDC.
